Concealed Tile-Insert Linear Floor Drain - Stainless Steel, 4×12
Concealed Tile-Insert Linear Floor Drain - Stainless Steel, 4×12
Couldn't load pickup availability
Product Details and Benefits
Product Details and Benefits
- Loved by home owners across Pakistan for a drain that disappears into the floor instead of sitting as a visible metal grate.
- Backed by AquaFit's return policy. Order with confidence.
- This linear floor drain measures 4x12 inches. It fits into a shower, wet room, or bathroom floor as a single, quiet strip in the tile line.

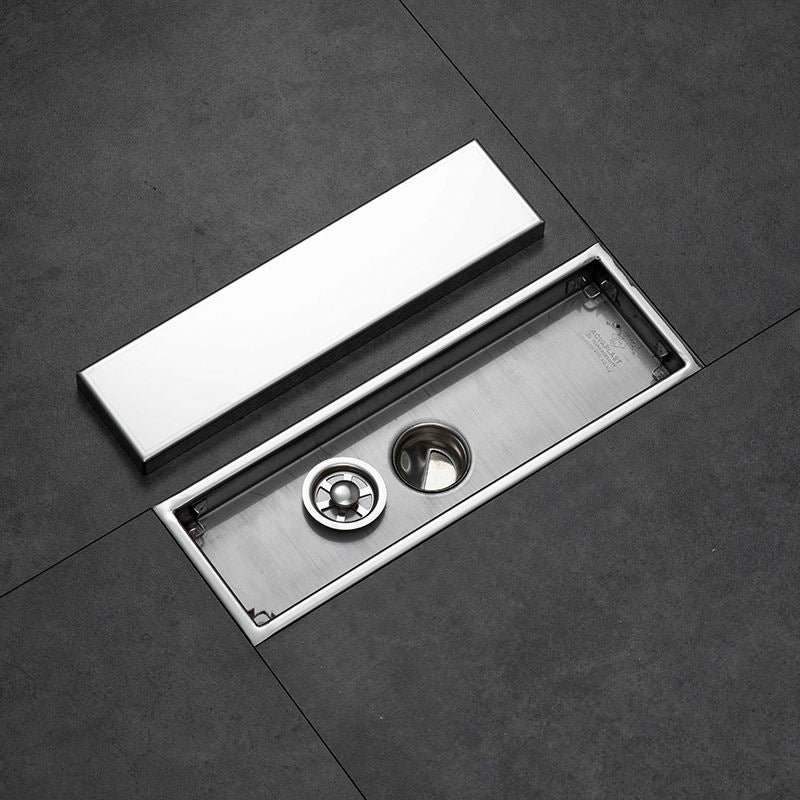

- As a tile insert floor drain, the tray holds a cut piece of your own floor tile. Once set, the drain reads as a thin seam instead of a metal cover.

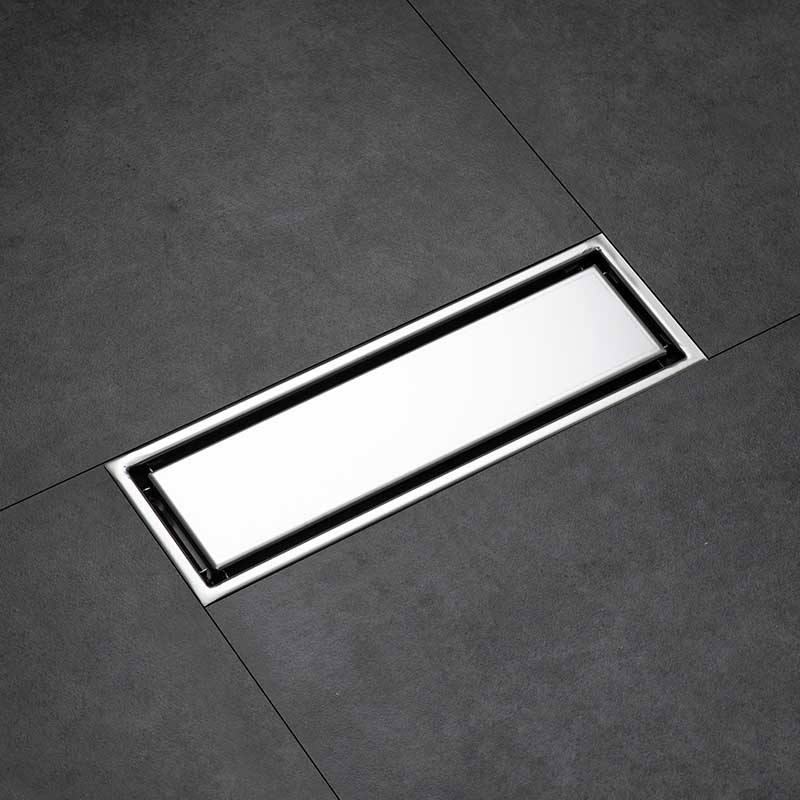

- Prefer a finished metal look instead? A separate solid, mirror-polished cover is included. Use either the tile insert or the polished plate, depending on the look you want.
- This concealed floor drain also includes a removable strainer basket and a perforated cap strainer, so hair and debris get caught before reaching the pipe.
- A built-in trap blocks bad odors, insects, and backflow from coming up through the drain.
-
Made from SUS 304 stainless steel, this stainless steel shower drain resists rust and corrosion in a constantly wet environment.
- Works beyond the bathroom too, in kitchens, balconies, wet rooms, and commercial spaces that need reliable floor drainage.
Specifications
Specifications
Type: Linear floor drain, also called a tile insert floor drain,
Size: 4 × 12 inches
Design: Tile-insert tray (holds a cut tile piece for a flush, invisible finish) with an included alternate solid mirror-polished cover plate
Strainer: Removable strainer basket and a separate perforated cap strainer
Trap System: Built-in linear floor trap that blocks odor, insects, and backflow
Material: SUS 304 stainless steel
Use: Bathroom, shower, wet room, kitchen, balcony, commercial spaces - a long floor drain for shower and wet room use
Installation: Requires proper floor slope and waterproofing as part of tiling work. If the tray sits deeper than your tile thickness, it needs building up with thinset first for a flush, leak-free fit. This is not a simple tool-free installation. Professional tiling installation is recommended.
Cleaning: Lift the strainer periodically and rinse away trapped debris
Package Includes: 1 × Drain Body with Tile-Insert Tray, 1 × Solid Cover Plate, 1 × Strainer Basket, 1 × Perforated Cap Strainer
Our Review
Our Review
Finish & Concealment: 4.5/5
Drainage & Trap Performance: 4.5/5
Installation Complexity: 3.5/5
As a linear floor drain, the main appeal is how little you see once it's installed.
Set a piece of your own floor tile into the tray, and the drain reads as a thin seam in the floor rather than a visible metal grate.
The trap system does real work here. It blocks odor, insects, and backflow from coming back up through the drain, which matters more in a linear format than people expect, since the long channel shape gives smells more surface area to escape from without a proper trap.
One honest note that applies to tile-insert drains generally, not just this one: the tray depth needs to match your tile thickness.
If the tray sits deeper than the tile, water can pool instead of draining flush.
Building the tray up with thinset before setting the tile solves this, but it's a real step, not something to skip.
This isn't a simple screw-in fixture. Getting a linear drain right means proper floor slope and waterproofing done during tiling, not after.
That's true of every tile-insert drain in this category, not a weakness specific to this one, but it does mean budgeting for a proper installation rather than a DIY afternoon project.
For a bathroom or wet room renovation aiming for a clean, minimal floor line, this earns its place.
It's the wrong pick for anyone wanting a same-day, no-fuss swap of an old round drain, since the tile-insert design genuinely requires tiling work to look and function right.
Price vs. Specification: this floor drain earns its price through a genuine invisible finish option, a real trap system, and stainless steel construction that holds up in constant water exposure.
It's the right pick for a proper bathroom or wet room renovation. It's not the right pick if you want a same-day replacement without tiling work involved.
Free Shipping & Returns
Free Shipping & Returns
Shop worry-free! Get free shipping on all orders above Rs. 2,500.
And if your product ever arrives with a defect, we've got you covered with easy 7-day returns - no stress, no hassle.
Frequently Asked Questions
What size is this drain?
4 × 12 inches.
Does it come with a solid cover, or only the tile-insert tray?
Both. The tile-insert tray lets you set a matching piece of your floor tile for an invisible finish. A separate solid, mirror-polished cover plate is also included if you'd rather have a visible metal finish instead.
Does it include a trap to block odors?
Yes, a built-in trap blocks bad odors, insects, and backflow from coming back up through the drain.
Is professional installation required?
Yes, for the best result. This isn't a simple screw-in fixture. It needs to be set into the floor as part of your tiling work, with the correct slope toward the drain and proper waterproofing. If the tray sits deeper than your tile, it needs building up with thinset first to avoid water pooling.
